Choosing the Right Copper Alloy: Phosphor Bronze vs. Aluminum Bronze vs. Beryllium Bronze

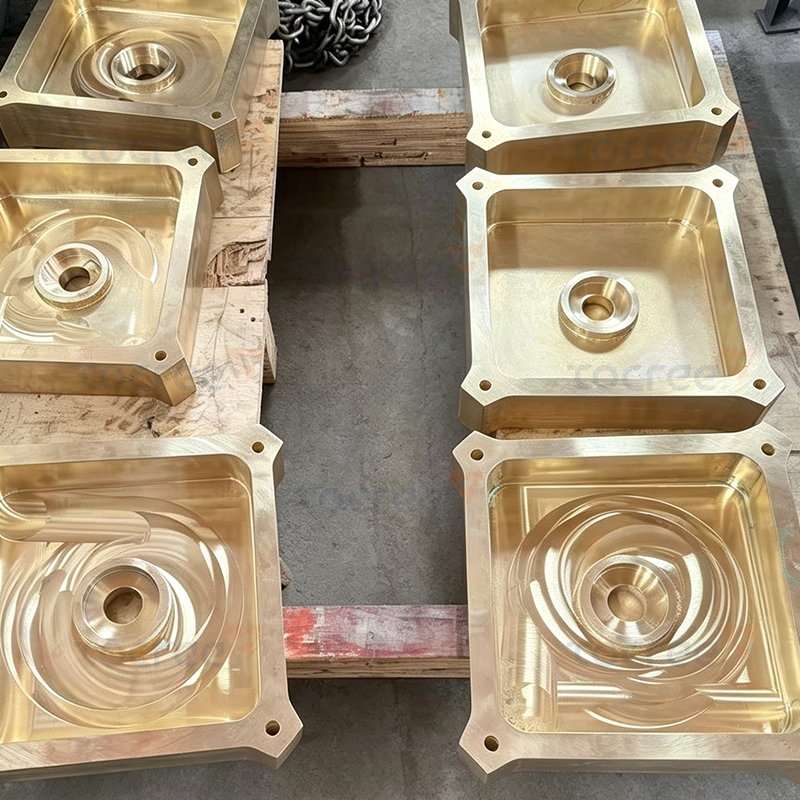

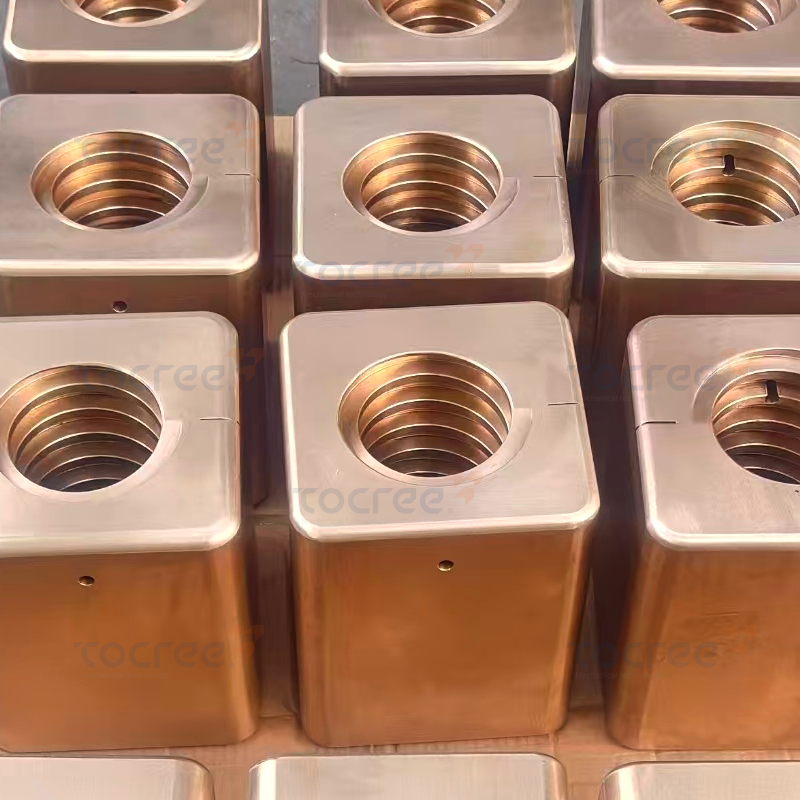

The performance gap between a properly matched copper alloy and a "close enough" substitute often shows up within the first few thousand operating hours. Phosphor bronze offers excellent conformability and embeddability, which makes it forgiving when lubrication is intermittent or contaminated with fine particulates — a common condition in mining and construction equipment. Aluminum bronze trades some of that softness for much higher hardness and compressive strength, making it the better choice for heavy shock loading such as excavator pivot points or crusher linkages. Tin bronze sits between the two, offering a balance of load capacity and machinability that suits general industrial bushings. Beryllium bronze is reserved for applications demanding high strength combined with fatigue resistance, such as high-cycle stamping dies or specialized mold components, though its higher cost usually limits use to critical wear points rather than entire assemblies.

Because we operate our own smelting furnace and centrifugal casting line, we control alloy composition from raw billet through to the finished bushing, which lets us adjust tin, aluminum, or phosphorus content within tighter bands than buying pre-cast stock allows.

Setting Diametral Clearance for Copper Alloy Bushings

Clearance between a bushing bore and its mating shaft is not a fixed number — it scales with shaft diameter, operating temperature, and lubrication method. Running clearance too tight risks seizure once thermal expansion takes effect; too loose accelerates edge loading and premature wear. A commonly applied guideline is to allow roughly 0.001 to 0.0015 inches of diametral clearance per inch of shaft diameter for oil-lubricated bushings, with slightly more allowance where grease lubrication or intermittent duty cycles are involved.

• Shafts under 50mm: typically 0.05-0.08mm clearance
• Shafts 50-150mm: typically 0.08-0.15mm clearance
• Shafts above 150mm: clearance calculated individually based on thermal cycle and housing material

For large-diameter bushings — we regularly machine finished copper sleeves in the 1.5 to 2 meter range — clearance calculations also need to account for the housing's coefficient of thermal expansion relative to the copper alloy, since a mismatch of even a few thousandths across a two-meter diameter can translate into measurable interference or looseness once equipment reaches operating temperature.

Oil Groove Geometry and Its Effect on Lubricant Retention

Straight vs. Spiral Grooves

Straight axial grooves are simple to machine and work well for unidirectional rotation, channeling lubricant along the length of the bushing without interrupting the load-bearing contact zone. Spiral or helical grooves, by contrast, actively pump lubricant along the bore as the shaft rotates, which improves oil distribution in bushings that see intermittent starts and stops — a frequent condition in construction and packaging machinery where motion is cyclical rather than continuous.

Groove Sizing Considerations

Groove width and depth should stay proportional to bushing wall thickness; oversized grooves reduce the effective bearing area and can create stress concentration points under heavy load. As a general rule, groove depth is kept to roughly 10-15% of wall thickness, and grooves are positioned away from the primary load zone so lubricant reservoirs are not compressed out during peak loading.

Reading Wear Patterns on Copper Alloy Slide Plates

Slide plates wear differently than round bushings because the contact geometry is flat and often subject to uneven load distribution across the plate's length. Inspecting a worn plate can tell you a great deal about upstream problems in the machine, not just about the plate itself.

For long slide plates, even a small deviation in flatness during manufacturing can turn into an uneven wear pattern once installed. We machine copper sliding plates up to 4 meters long, 400mm wide, and 100mm thick, and flatness control across that span is one of the more demanding parts of the process — a plate that is not held flat during machining will not seat evenly against its mating rail no matter how precise the surface finish is.

Installation Practices That Extend Service Life

Even a well-manufactured bushing or slide plate can fail early if installation introduces stress or misalignment that the alloy was never designed to absorb. A few practices consistently make a measurable difference in service life:

• Chamfer or deburr mating shaft and housing edges before press-fitting to avoid shaving copper material into the bore
• Apply press-fit force evenly and axially, never at an angle, to prevent bore distortion
• Re-check bore diameter after press-fitting, since interference fits can close clearance by several thousandths
• Flush lubrication channels of any machining residue before first startup
• Verify alignment under no-load conditions before applying full working load

Why Alloy Traceability Matters for Repeat Orders

When a customer needs a replacement part years after the original installation, matching the exact alloy composition matters more than matching the drawing dimensions. Slight variances in tin, phosphorus, or aluminum content between casting batches can change wear behavior and compatibility with existing lubrication systems, even if the part looks identical on paper. Because we cast our own copper billets in-house at roughly 2,300 tons of annual output, we can trace composition back to a specific melt and reproduce it for replacement parts rather than sourcing from whatever alloy happens to be available on the open market at the time.

Inspection Intervals for Heavy-Duty Copper Components

Bushings and slide plates in metallurgical or mining machinery rarely fail without warning; the wear is progressive and measurable if inspection is scheduled proactively rather than reactively. A practical approach ties inspection frequency to duty severity rather than a flat calendar interval.

• Continuous heavy-load service: measure bore or plate thickness every 500-800 operating hours
• Intermittent or light-duty service: measure every 1,500-2,000 operating hours
• After any abnormal vibration, noise, or temperature rise event: inspect immediately regardless of scheduled interval

Tracking wear rate over several inspection cycles, rather than relying on a single measurement, gives a much clearer picture of remaining service life and helps plan replacement part orders before a failure forces unscheduled downtime.
